GM168Y DTH Drilling Rig  Return

GM168Y DTH Drilling Rig

Update time:2023.02.21
product details

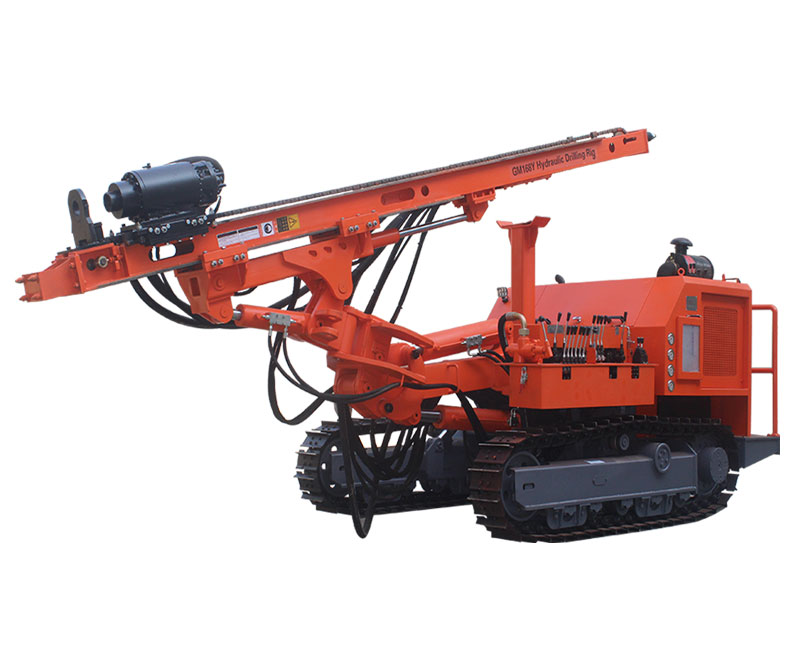

GM168Y high air pressure crawler open-air DTH Drill Rig has the advantages of low energy consumption, high efficiency, convenient field performance and transportation, the machine actions are realized by hydraulic system, only DTH hammer uses wind, so it greatly saves the cost for air compressor. The new type of rotary power head can supply and maintain strong rotary torque output during the blasting hole drilling construction. When this drilling machine dragging air compressor, they are flexibility, strong climbing ability, suitable for rugged field operation, and convenient for holes drilling.

The drilling rig has the advantages of high drilling efficiency, easy maintenance and high reliability. It is an ideal drilling rig for mining, anchoring, road building, water conservancy, power station construction and so on.

Technical parameters

Rotation Speed(Rpm)

80

Rotary torqueNm

3500

Mast compensation mm

1200

Propel speedM/s

0.6

Maximum propelKn

12

Maximum pull(Kn)

26

Mast lengthmm

5350

once promotionmm

3200

Walk speedKm/h

3

Chassis floating°

12

Chassis heightmm

310

Climb ability°

30

Diesel engine

Cummins

Transport dimensionmm

5920*2280*2480

Hole sizemm

80—150

Bore depth(m)

80
