G140YF DTH Drilling Rig  Return

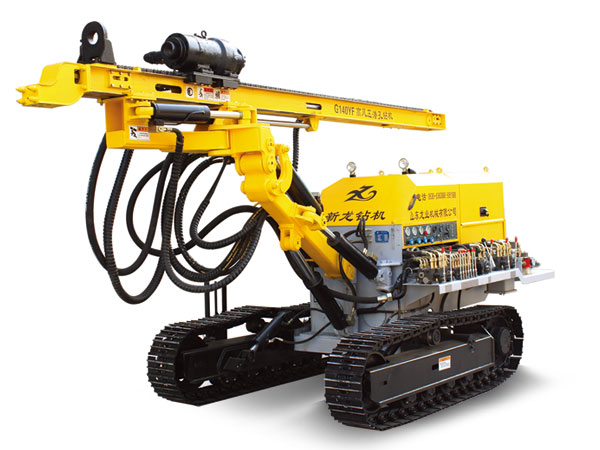

G140YF DTH Drilling Rig

Update time:2023.02.21
product details

G140YF High Air Pressure DTH crawler drilling rig hasexcellent performance with low energy consumption, highefficiency, easy transport.The drilling rig controlled by hydraulic systems,only DTH hammer consume air, so it saves purchase cost of the cost of whole equipment. The rotary system adopts new type motor that confirm maintaining large output of rotary torque, when dragging air compressor, it is very flexible and has strong climbing ability, suitable for rugged ground operations.This rig has high drilling efficiency, easy maintenance, high reliability, capable for mining, highway, water conservancy, power station construction and other blasting hole projects.

Bore diameter(mm)

100140

Bore depth(m)

60

Walk speed(km/h)

02.5

For rock(F)

620

Air pressure(Mpa)

1.052.46

Air consumption(m3/min)

1020

Once promotion(mm)

3000

Skid pitch(°)

100

Skid swing angle(°)

100

Boom swing angle(°)

70

Boom pitch(°)

60

Host power(Kw)

56

Rotation speed(r/min)

0126

DimensionL*W*H) (mm)

5270*1960*2300

weight(Kg)

4800
