SLY485 water well drilling rig  Return

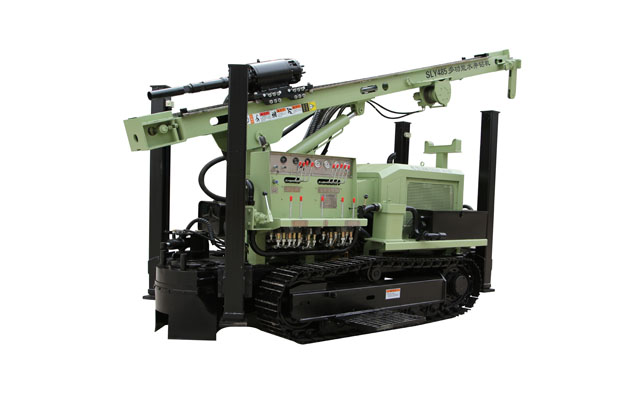

SLY485 water well drilling rig

Update time:2023.02.22
product details

SLY485 multi-function crawler waterwell drilling rig is lightweight, efficient, multi-purpose drilling equipment,which can use air,foam,or mud rotary for percussive drilling according todifferent textures. It is widely used in industrial and agricultural waterconservancy projects, such as drilling wells, testing wells or otherexploration boreholes, in particular, in drilling hole for geothermal heating,it can also meet the engineering basis for reinforcement, loose graveldrilling, rock formation drilling and a variety of engineering requirements.

Technical parameters

Bore diameter(mm)

115-300

Bore depth(m)

200

Walk speed(km/h)

0-2.5

For rock(F)

6-20

Air pressure(Mpa)

1.05-3.0

Air consumption(m³/min)

16-30

Once promotion(mm)

3000

Maximum height from the ground(mm)

320

Rotation Speed(r/min)

0-100

Rotation torque(NM)

3900

Lifting power(T)

8

Climb ability(°)

25

DimensionL*W*H)(mm)

4900*1600*2400

weight(Kg)

5700
